Front View
Interior Rails
Plinth Airflow
Digital Controller
Dimensions560x700x880mm
Gross Volume—
Operating Temp—
HoshizakiModel: IM-240ANE-28SKU: IM-240ANE-28

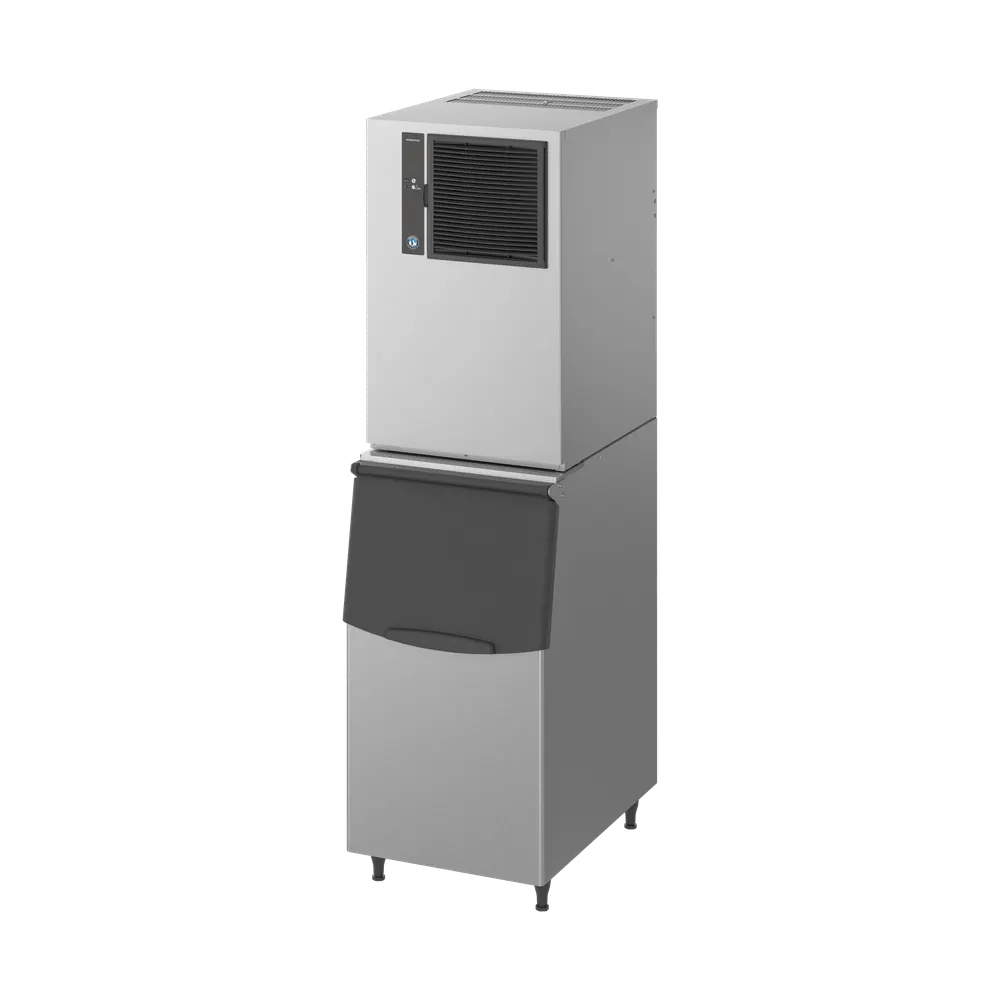

Hoshizaki 205KG CUBE ICE MAKER - IM-240ANE-28
·✓ Verified Commercial Feedback
205KG CUBE ICE MAKER (model IM-240ANE-28). 560 x 700 x 880 mm.
$6,979 AUD
Includes 10% Australian GST ($634 GST)
Trade Discount Price:On application
SilverChef Rent-Try-Buy (100% Tax Deductible):From $112 AUD / week
Availability on request· Contact us for stock levels and delivery times
Delivery Lead Time & Cost Estimator
Australia-WideHoshizaki 205KG CUBE ICE MAKER - IM-240ANE-28 Engineering Data
Tested to Australian MEPS and HACCP food safety standards.
ModelIM-240ANE-28
ManufacturerHoshizaki
TYPE OF ICECube
PRODUCTION CONFIGURATIONModular
PRODUCTION CAPACITY (KG/24H)205
Product TypeIce Maker
Production Capacity per 24hoursApprox. 220kg @10°C Air temp; 10°C WaterApprox. 205kg @21°C Air temp; 15°C WaterApprox. 160kg @32°C Air temp; 21°C Water
Freeze Cycle TimeApprox. 20 Min
Ice Production Per cycleApprox. 3.2kg/140pcs
Width560
Depth700
Height880
Weight Net80
Packed Weight95
CoolingAir
AC Supply Voltage1 PHASE 220-240V 50Hz/ 10 AMP Plug
AmperageRunning: 6.6A Rated: 6.6A Starting: 35A
Refrigerant ChargeR404A / 480g
Operating ConditionsAmbient Temp.: 1-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.07-0.8MPa (0.7-8bar) Voltage Range: Rated Voltage ±6%
Cube Size28mm
Refrigerant GasR404A
Included Factory Features:
